Types of Topology

Topology defined in Networking

Created: 2022-04-23
Tags: #literature

Abstract:

Bus Topology
Ring Topology
Star Topology
Each topologies have their own strengths and weaknesses.

Bus Topology
Cons: Sending too many packets as fast as possible can take down the network.

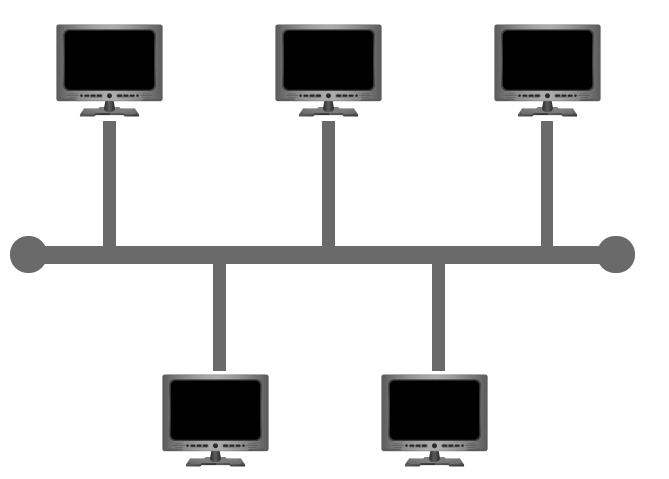

It only uses single connection known as `backbone cable`.

Ring Topology
Ring Topology

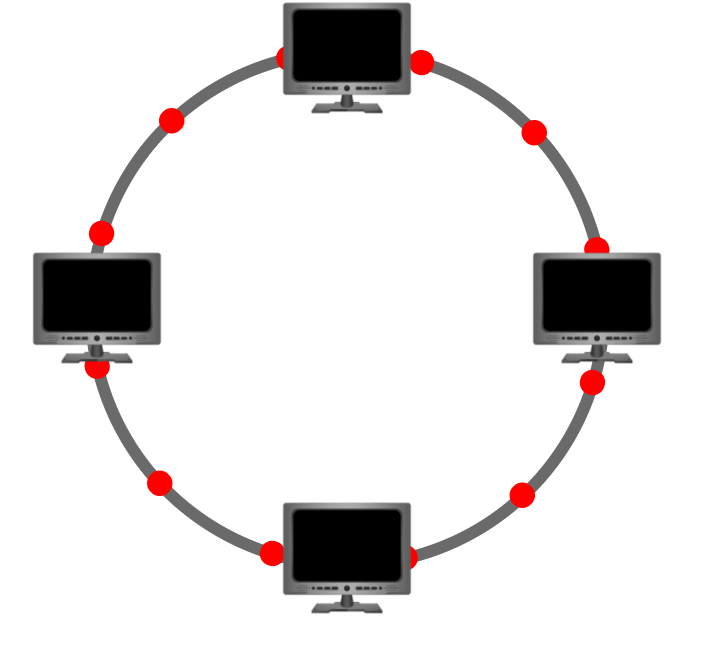

It carries data that circulates through each devices

Star Topology
Star Topology

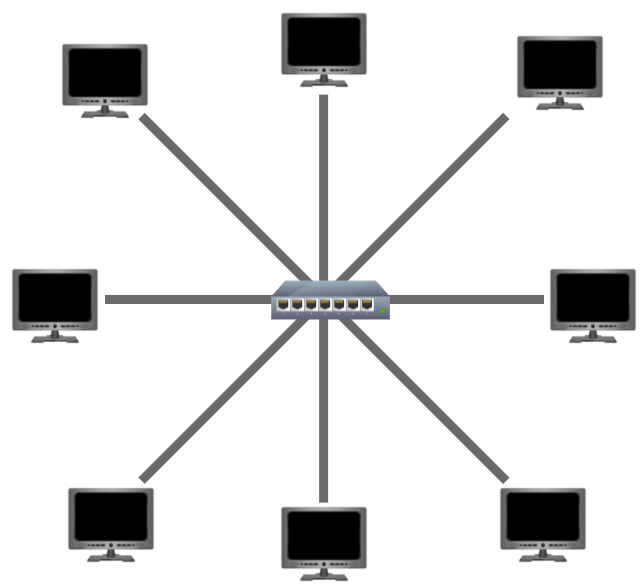

The switch has a one-on-one cabled connection to each devices.
Communication relies passing messages to the switch and the switch itself will be responsible for delivering that message to the correct device.
